Salt Chlorinators & Replacement Cells, Brisbane
Queensland Pool Solutions can provide cost effective solutions if you are considering replacing your salt chlorinator. We supply and install quality products from leading manufacturers including Pool Lab, Hayward, Astral and Poolrite. If you require a replacement salt chlorinator cell for your Pure Silk Chlorinator, Astral or Hurlcon salt chlorinator, or Poolrite Chlorinator, we can supply, or supply and install them at competitive prices.

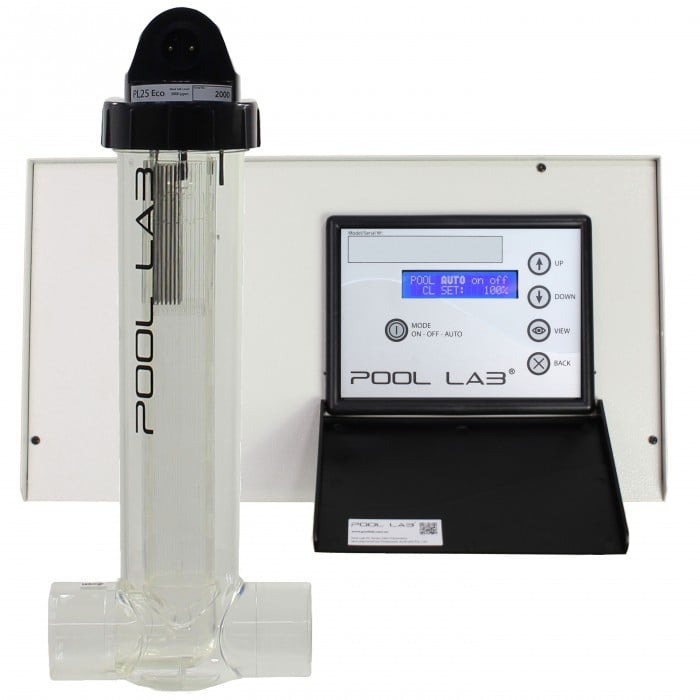

Pool Lab Eco Salt Chlorinator
The Pool Lab ECO salt chlorinator is a low cost, fully automatic and self cleaning chlorinator for domestic pools up to 60,000 litres.
Features & Benefits
Technical Specifications
- Low and high salt warnings
- Automatic self cleaning cells
- Autmatic memory save
- Efificient switch mode power supply
Technical Specifications
- Produces 25 grams of chlorine gas per hour
- Ideal salt level 5600ppm with water at 25°C
- Suits outdoor pools up to 60,000 litres
- Suits indoor pools up to 90,000 litres
- 2 year warranty on control box and cell*
Pool Lab PL Classic Salt Chlorinator
Innovative technology designed for the Australian market, Pool Lab® salt chlorinators cope with conditions others cannot tolerate. They perform efficiently and economically for longer, without the need for constant adjustment or maintenance.
Features & Benefits
Technical Specifications
- Control Panel Very easy to set times and operate with no complicated menus to navigate through.
- Efficient Switch Mode Power Supply Compact and light weight, the control box is high tech and efficient compared with old style heavy transformer power supplies.
- Heavy Duty Control Unit Weather proof and suitable for outdoor installations with display cover to protect against the effects of the sun.
- Patented Automatic Self-Cleaning Cells Clever software in the microprocessor automatically reverses the polarity of the electrolytic plates to maximise the self- cleaning process.
- Patented Clear Vertical Cell The clear high strength vertical cell incorporates flow detection and by its design, provides 100% hydrogen gas evolution protection. Some horizontal cells that rely on a flow switch only do not provide this level of protection.
- Automatic Output Limiting This protects the power supply from over-salting and allows salt to be added without switching the chlorinator off.
- Automatic Low Salt Warning If salt levels fall below the optimum level, the diagnostic display scrolls a message requesting a salt top up.
- Automatic Low Salt Stop & Re-Start If salt levels fall below the minimum threshold where electrode damage may occur, the cell shuts down and a LOW SALT – OFF message scrolls. The chlorinator periodically re-tests and when normal salt levels are restored the cell automatically re-starts.
- Automatic Memory Save If there's a power failure all information is stored for at least seven days. There are no batteries that can go flat or leak.
- Automatic Pump Protection Monitor If the pump is starved of water and running dry, the chlorinator switches the pump off to prevent damage occurring. Run-dry timing can be adjusted for different hydraulic conditions and pump types.
- Automatic Pump Flush Cell power switches off 30 seconds prior to pump switch off to flush the filtration system components of concentrated chlorine. This prevents high chlorine levels corroding pipe work, heat exchangers or in-floor cleaning systems.
- Compatible with all mineral salt additives Pool Lab chlorinators will operate with all mineral salt additives.
- Smart diagnostic display No need to take your cell to a pool shop for testing. With a touch of a couple of buttons, the Chlorinator will provide you with all the Volts and Amp data you require, on both polarities to establish if the cell is in good condition. Enter history to see total cell running hours with chlorine output per day and week displayed.
Technical Specifications
- Available in 25 gram, 35 gram and 45 gram Models.
- Cell has 50mm unions (reducers not included)
- 5 year warranty on control box and cell

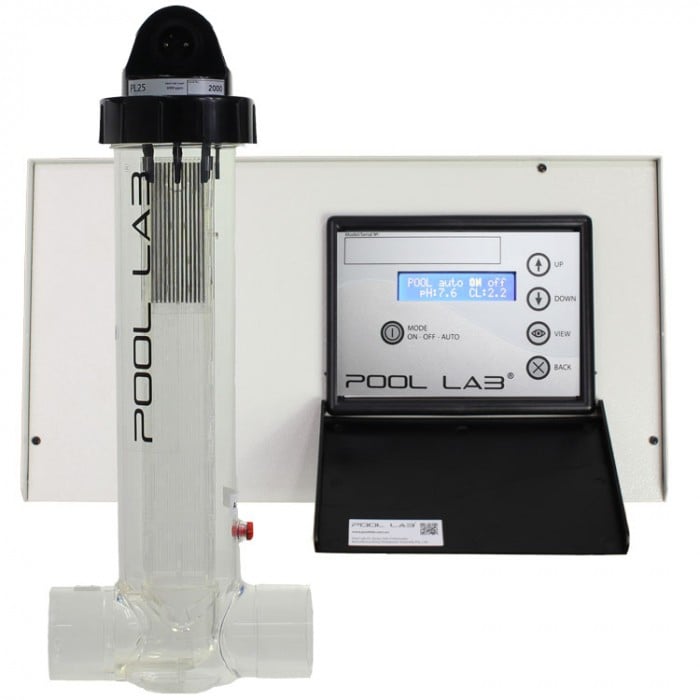

Pool Lab PL Plus Salt Chlorinator
Take salt chlorination to the next level with the Pool Lab Plus Series. All the great features of the PL Classic series, plus the ability to connect and control both the Pool Lab Auto Sampling Photometer (ASP) and the Spa Flow Switch
Features & Benefits
Technical Specifications
- Connect to the ASP Gain full chlorine and pH control by connecting the Pool Lab ASP.
- Connect Spa Flow Switch Made for pool/spa combo's to prevent over-chlorination when in spa only mode.
- Control Panel Very easy to set times and operate with no complicated menus to navigate through.
- Efficient Switch Mode Power Supply Compact and light weight, the control box is high tech and efficient compared with old style heavy transformer power supplies.
- Heavy Duty Control Unit Weather proof and suitable for outdoor installations with display cover to protect against the effects of the sun.
- Patented Automatic Self-Cleaning Cells Clever software in the microprocessor automatically reverses the polarity of the electrolytic plates to maximise the self- cleaning process.
- Patented Clear Vertical Cell The clear high strength vertical cell incorporates flow detection and by its design, provides 100% hydrogen gas evolution protection. Some horizontal cells that rely on a flow switch only do not provide this level of protection.
- Automatic Output Limiting This protects the power supply from over-salting and allows salt to be added without switching the chlorinator off.
- Automatic Low Salt Warning If salt levels fall below the optimum level, the diagnostic display scrolls a message requesting a salt top up.
- Automatic Low Salt Stop & Re-Start If salt levels fall below the minimum threshold where electrode damage may occur, the cell shuts down and a LOW SALT – OFF message scrolls. The chlorinator periodically re-tests and when normal salt levels are restored the cell automatically re-starts.
- Automatic Memory Save If there's a power failure all information is stored for at least seven days. There are no batteries that can go flat or leak.
- Automatic Pump Protection Monitor If the pump is starved of water and running dry, the chlorinator switches the pump off to prevent damage occurring. Run-dry timing can be adjusted for different hydraulic conditions and pump types.
- Automatic Pump Flush Cell power switches off 30 seconds prior to pump switch off to flush the filtration system components of concentrated chlorine. This prevents high chlorine levels corroding pipe work, heat exchangers or in-floor cleaning systems.
- Compatible with all mineral salt additives Pool Lab chlorinators will operate with all mineral salt additives.
- Smart diagnostic display No need to take your cell to a pool shop for testing. With a touch of a couple of buttons, the Chlorinator will provide you with all the Volts and Amp data you require, on both polarities to establish if the cell is in good condition. Enter history to see total cell running hours with chlorine output per day and week displayed.
Technical Specifications
- Available in 25 gram, 35 gram and 45 gram models.
- Ideal salt level 3000ppm with water at 25°C
- Cell has 50mm unions (reducers not included)
- 5 year warranty on control box and cell

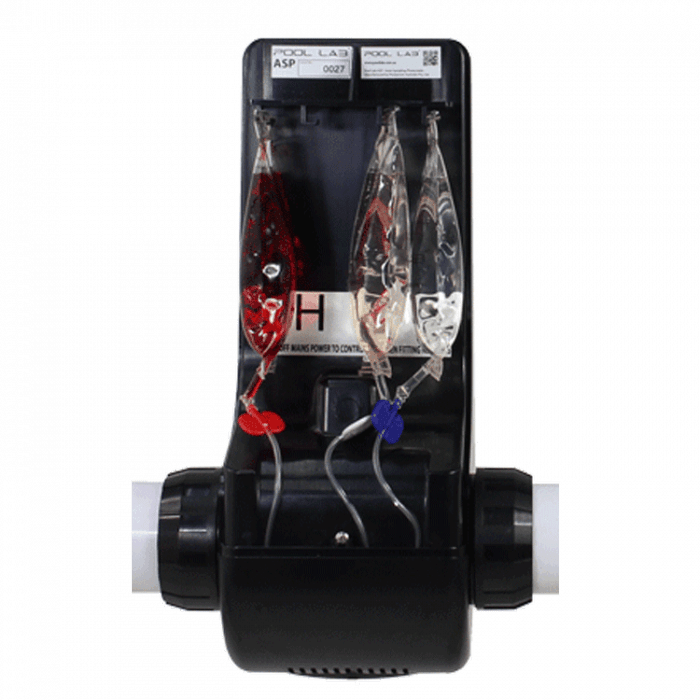

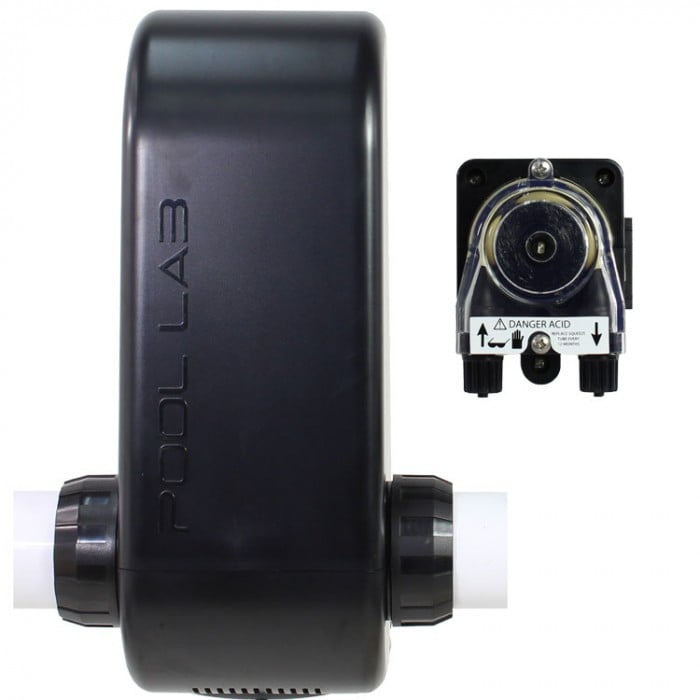

Pool Lab ASP
Photometrics – the measurement of light absorbance - has long been recognised as the gold standard globally for accurately analysing pool water chemistry. Pool Lab’s Auto Sampling Photometer (ASP) brings this to the domestic swimming pool with automated in situ testing and balancing of the core parameters of pool water balance – chlorine and pH.
Chlorine and pH are central to a sanitised pool. Correctly maintaining them ensures a safe swimming environment, but can also be a lot of guesswork. The dynamic nature of chlorine and pH in a pool means they are constantly changing in response to environmental conditions, so what’s right one day is not necessarily right the next.
Handling pool chemicals is also a safety hazard. Chlorine and acid are both highly corrosive and it is essential that they are dispensed and stored in a safe manner.
The Pool Lab ASP ends the guessing game. Set your chlorine and pH targets in the control module then let the ASP take control. Performing multiple tests a day, the ASP carefully monitors changing water chemistry and adapts the dosing schedule as required – ensuring your pool is always safe for swimming.
Chlorine production is managed through the Pool Lab Plus salt chlorinator. By adding salt to the pool, the salt chlorinator is able to continuously generate chlorine directly in the water – right where it needs to be. The ASP will switch chlorine production on and off as required, working to the set target.
pH Control Pool Lab's unique cell mounted peristaltic pump automatically feeds acid at precise intervals and rates to maintain pH levels. The system will alert you when the acid resevoir is empty and requires replacement.
Photometric water analysis Light is passed though a sample of water that has been mixed with colour forming reagents.Light of a specific wavelength is passed through the sample and absorbance is measured. Pool lab’s proprietary reagents come packaged in easy to replace, IV-style bags. The bags contain formula for approx. 500 tests so will last six to eight months on the standard domestic swimming pool.
At the core of the ASP is an incredibly clever algorithm which not only calculates dosing requirements but also continually evaluates the effect of recent dosing, adjusting and adapting in real time to environmental conditions. This means manual adjustments for changes in weather or bather load are no longer required.
Combine the Pool Lab ASP with any Pool Lab Plus model chlorinator for the ultimate in pool water management.
Chlorine and pH are central to a sanitised pool. Correctly maintaining them ensures a safe swimming environment, but can also be a lot of guesswork. The dynamic nature of chlorine and pH in a pool means they are constantly changing in response to environmental conditions, so what’s right one day is not necessarily right the next.
Handling pool chemicals is also a safety hazard. Chlorine and acid are both highly corrosive and it is essential that they are dispensed and stored in a safe manner.
The Pool Lab ASP ends the guessing game. Set your chlorine and pH targets in the control module then let the ASP take control. Performing multiple tests a day, the ASP carefully monitors changing water chemistry and adapts the dosing schedule as required – ensuring your pool is always safe for swimming.
Chlorine production is managed through the Pool Lab Plus salt chlorinator. By adding salt to the pool, the salt chlorinator is able to continuously generate chlorine directly in the water – right where it needs to be. The ASP will switch chlorine production on and off as required, working to the set target.
pH Control Pool Lab's unique cell mounted peristaltic pump automatically feeds acid at precise intervals and rates to maintain pH levels. The system will alert you when the acid resevoir is empty and requires replacement.
Photometric water analysis Light is passed though a sample of water that has been mixed with colour forming reagents.Light of a specific wavelength is passed through the sample and absorbance is measured. Pool lab’s proprietary reagents come packaged in easy to replace, IV-style bags. The bags contain formula for approx. 500 tests so will last six to eight months on the standard domestic swimming pool.
At the core of the ASP is an incredibly clever algorithm which not only calculates dosing requirements but also continually evaluates the effect of recent dosing, adjusting and adapting in real time to environmental conditions. This means manual adjustments for changes in weather or bather load are no longer required.
Combine the Pool Lab ASP with any Pool Lab Plus model chlorinator for the ultimate in pool water management.
Pure Silk Spare Parts

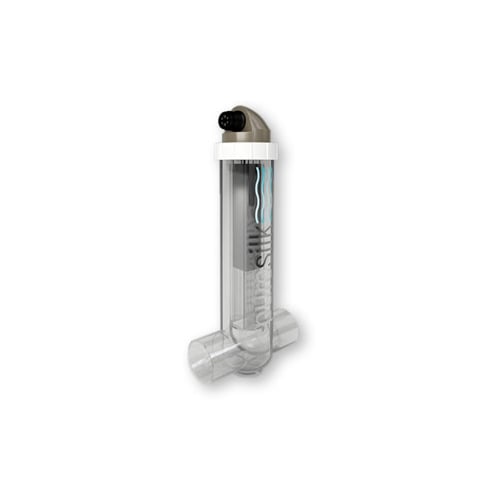

Pure Silk Replacement Cells
Genuine replacement cells for the Pure Silk and Hayward Pure Silk Chlorinator, cell only - excludes housing
Model PS25 (3750 ppm)- Our Price $695.00Model PS35 (3750 ppm)- Our Price $950.00
Model HPS25B (5000ppm) - Our Price $495.00
Contact us for Pricing on other models
Model PS25 (3750 ppm)- Our Price $695.00Model PS35 (3750 ppm)- Our Price $950.00
Model HPS25B (5000ppm) - Our Price $495.00
Contact us for Pricing on other models
Pure Silk Chromatalyzer/Pool Lab ASP Reagent Set
Pure Silk Chromatalyzer and Pool Lab ASP Reagent Set
Our Price $98.00
Prices are inclusive of GST and are exclusive of shipping costs.
Our Price $98.00
Prices are inclusive of GST and are exclusive of shipping costs.

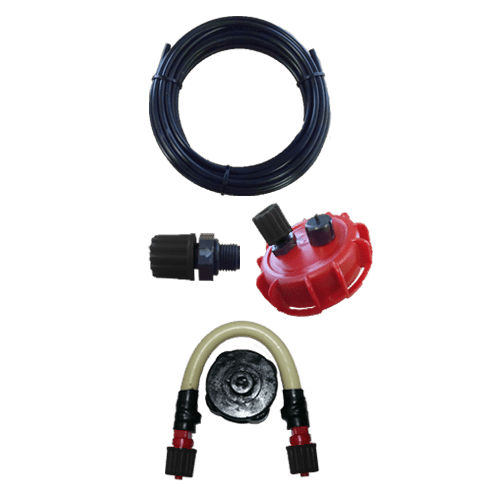

Pure Silk Chromatalyzer CPS2 Service Kit
Chemical delivery system service kit to Puresilk Chromatalyzer CPS2 model. This kit contains all parts to service the hydrochloric acid delivery system.
Our Price $135.00
Prices are inclusive of GST and are exclusive of shipping costs.

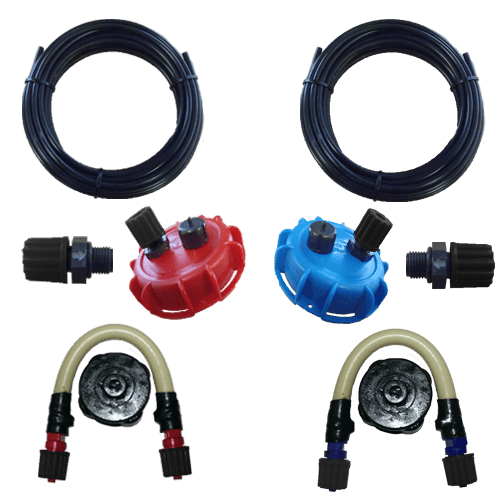

Pure Silk Chromatalyzer CPS3 Service Kit
Chemical delivery system service kit to Puresilk Chromatalyzer CPS3 & COMM1000 models. This kit contains all parts to service the hydrochloric acid and liquid chlorine delivery system.
Our Price $245.00
Prices are inclusive of GST and are exclusive of shipping costs.

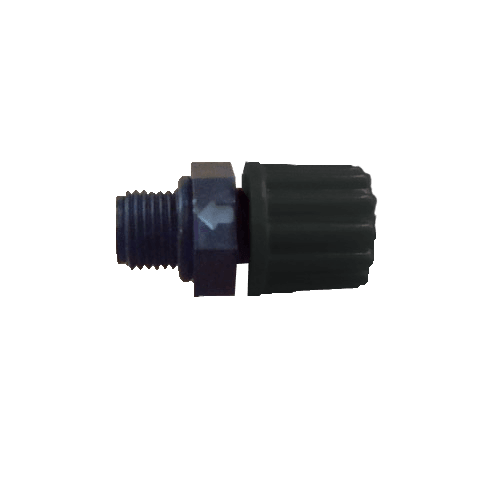

Chromatalyzer One Way Check Valve
One Way Check Valve for Puresilk Chromatalyzer Chemical Delivery System (all models). Suitable for acid or chlorine port.
Our Price $60.00
Prices are inclusive of GST and are exclusive of shipping costs.
Prices are inclusive of GST and are exclusive of shipping costs.

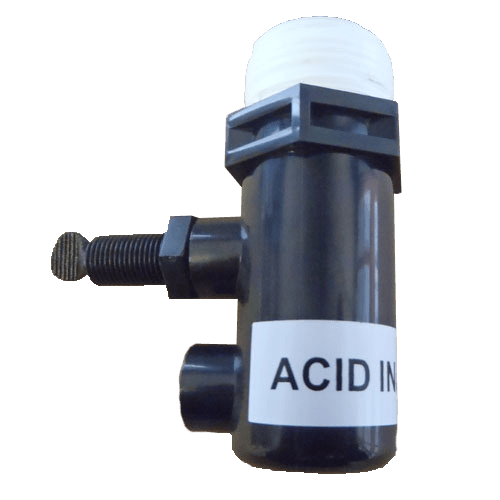

Chromatalyzer Acid Injector Port (CPS2)
Acid injection port for Puresilk Chromatalyzer - suits CPS2 model only.
Our Price $53.00
Prices are inclusive of GST and are exclusive of shipping costs.
Prices are inclusive of GST and are exclusive of shipping costs.

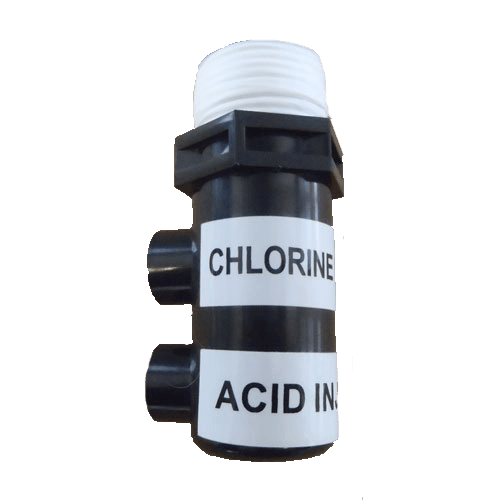

Chromatalyzer Acid/Chlorine Injector Port (CPS3)
Acid and chlorine injection port for Puresilk Chromatalyzer - suits CPS3 and COMM1000 models only
Our Price $53.00
Prices are inclusive of GST and are exclusive of shipping costs.
Prices are inclusive of GST and are exclusive of shipping costs.

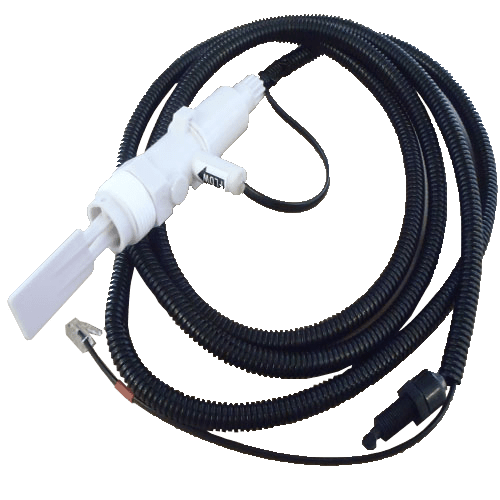

Chromatalyzer Flow Switch Assembly
Replacement water sample line & flow switch assembly for Puresilk Chromatalyzer (suits all models).
Our Price $169.00
Prices are inclusive of GST and are exclusive of shipping costs.
Prices are inclusive of GST and are exclusive of shipping costs.

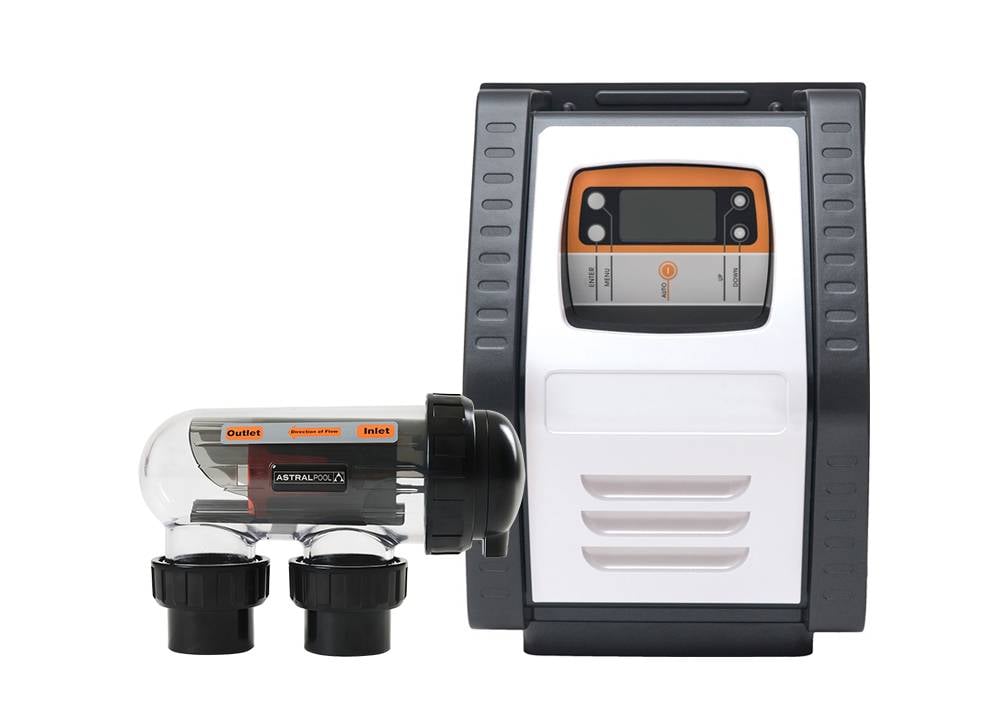

AstralPool E Series Salt Chlorinator
The E Series Salt Chlorinator offers affordable, reverse polarity self cleaning technology in a simple to use, easy to install yet robust and reliable product.
This legendary reliability has now been incorporated into a low cost, reverse polarity, self cleaning salt chlorinator – the E Series Salt Chlorinator.
Using the same platform as the renowned VX, the E Series simplifies the operation and functionality to provide a low cost, low maintenance salt chlorinator suitable for most sized residential swimming pools.
This legendary reliability has now been incorporated into a low cost, reverse polarity, self cleaning salt chlorinator – the E Series Salt Chlorinator.
Using the same platform as the renowned VX, the E Series simplifies the operation and functionality to provide a low cost, low maintenance salt chlorinator suitable for most sized residential swimming pools.

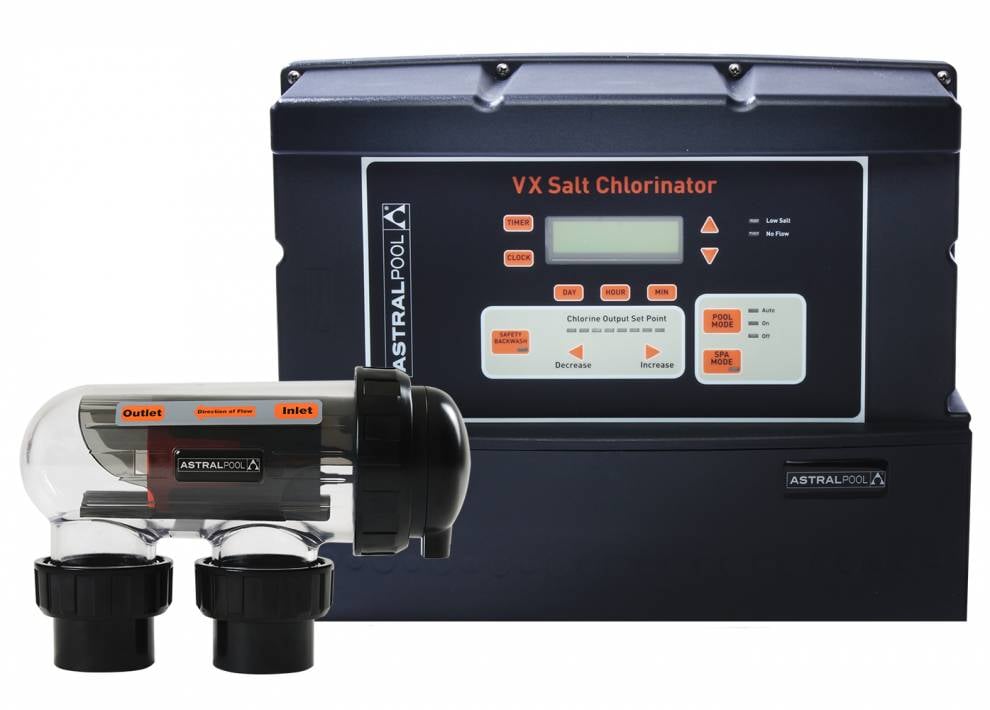

AstralPool VX Salt Chlorinator
Manual dosing of liquid or granular chlorine can be hazardous. Over dosing can cause eye irritation, itchy skin and a strong chlorine order. The AstralPool VX salt chlorinator continuously generates the precise level of chlorine required into your pool. With the convenience of a touch pad the level of output can be adjusted and operating hours can be preset. With the self cleaning ability the VX Salt Chlorinator is perfect for any pool and spa combination

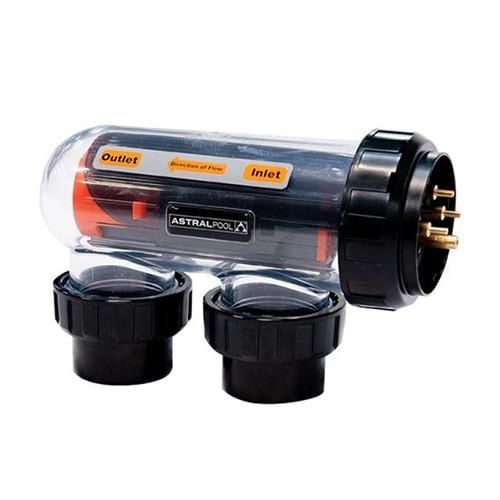

Replacement Cells for Astral/Hurlcon/Viron Salt Chlorinators
.jpeg)
Genuine replacement cells available for the Hurlcon and Astral range of Salt Chlorinators models.
Contact us for best pricing
Contact us for best pricing
Contact us for competitive pricing on Replacement Chlorinator Cells
